Classical Rubber Banded High Wear Resistance Oil Resistant C Vee Belt Width 22 Height 14 Length 47''-590'' Angle 40
1. Maximum adhesion between the tension members and the insulation section of the belt.
2. Excellent flexibility.
3. Oil & heat resistance,static conductivity.
4. Uniform quality and true dimensional stability through modem production facilities.
5. Longer belt life.
6. No slip/constant grip
Transmission banded v-belts are unitary and every piece can bear strength equally,work steadily,with long life and suitable for the high-power transmission.
| Catalog |
| S/N | Classification | Model | Top width(mm) | Heigth(mm) | Length(inch) | Executive Standard |
| 1 | Classical V-belt for general drive | Z (O) | 10 | 6 | 22''----185'' | GB/T1171-2017 |
| 2 | A | 13 | 8 | 22''----185'' |
| 3 | B | 17 | 11 | 26''----590'' |
| 4 | C | 22 | 14 | 47''----590'' |
| 5 | D | 32 | 19 | 98''----630'' |
| 6 | E | 38 | 25 | 110''----630'' |
| 1 | Narrow V-belt for general drive | 3V (9N) | 9.5 | 8 | 49''----140'' | GB/T12730-2018 |
| 2 | 5V (15N) | 15 | 13 | 49''----532'' |
| 3 | 8V (25N) | 25 | 23 | 100''----532'' |
| 4 | SPA (13N) | 13 | 10 | 47''----197'' |
| 5 | SPB (16N) | 17 | 14 | 49''----331'' |
| 6 | SPC (22N) | 22 | 18 | 74''----441'' |
| 7 | SPZ (10N) | 10 | 8 | 46''----140'' |
| 2 | Joined classical V-belts | BJ | 17 | 13 | 57''----197'' | HG／T 3745—20 11 |
| 3 | CJ | 22 | 17 | 77''----473'' |
| 4 | DJ | 32 | 21 | 197''----394'' |
| 5 | EJ | 38 | 28 | 110''----630'' |
| 1 | Joined narrow V-belts | 3V (9J) | 9.7 | 9.7 | 55''----140'' | HG/T2819-2010 |
| 2 | 5V (15J) | 15.7 | 15.7 | 49''----315'' |
| 3 | 8V (25J) | 25.4 | 25.4 | 100''----426'' |
| 4 | SPC | 22 | 20 | 78''----441'' |
| Length can be customized. |

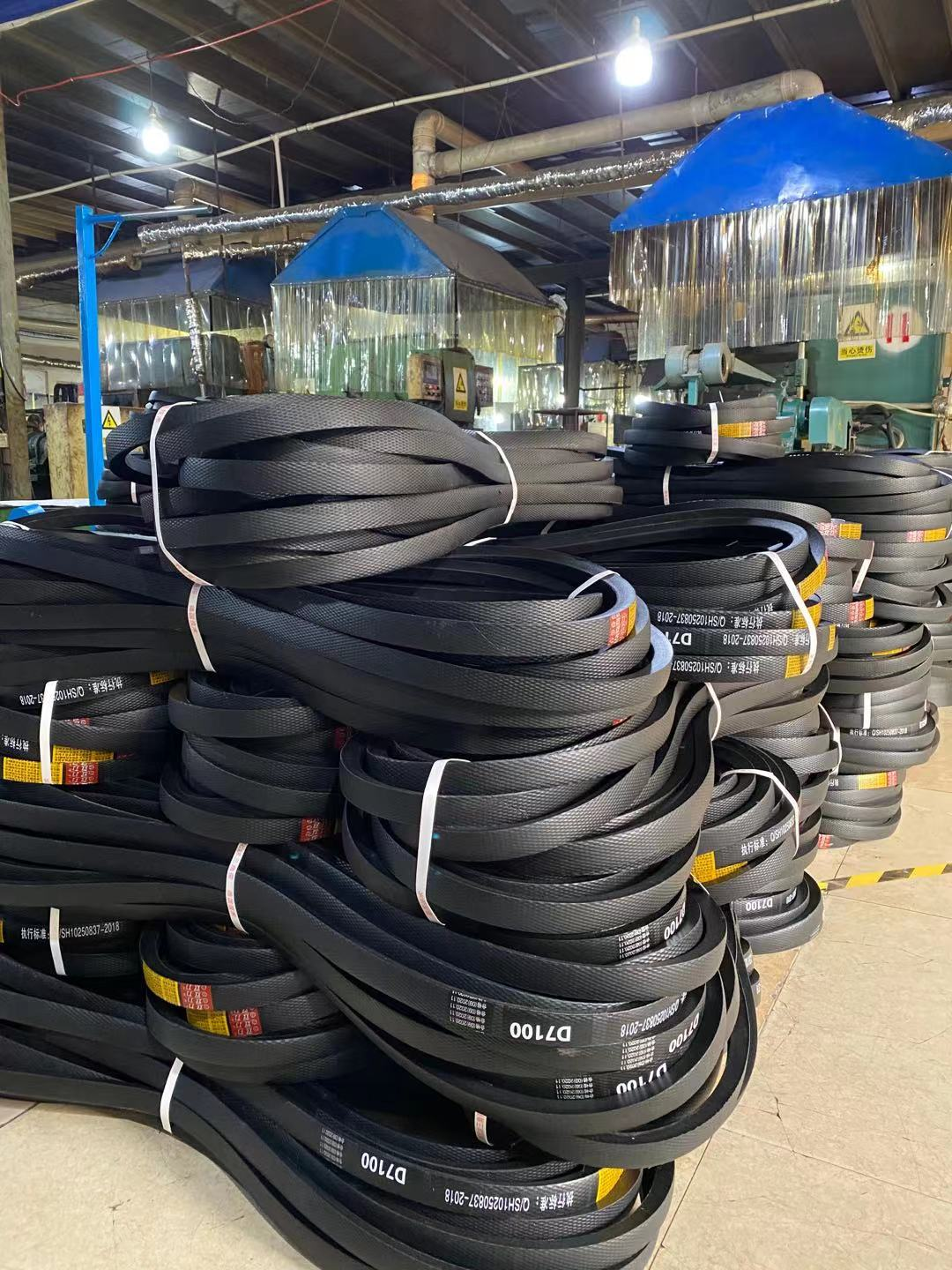

Product Image:
Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
