Multi Rib V Belt Are Low Noise , Self-Tracking , Capable Of Running At High Speeds
Description:
multi-rib V belts for use in high speed and high ratio drive applications. Constructed with polybutadiene rubber and polyester cords, our belt flexes around small drive pulleys allowing for high ratio drives to be used in compact drive package design. Multi-V Rib belts run quiet and deliver low vibration and will not turnover at high speeds. Fabric is added to the belts back side to increase lateral stiffness.
Model:
| Type | Top width(mm) | Belt Thickness (mm) | Angle (°) | Production scope (lnch) |
| O(M) | 10 | 6 | 40° | 20-120 |
| A | 13 | 8 | 40° | 25-150 |
| B | 17 | 11 | 40° | 28-400 |
| C | 22 | 14 | 40° | 48-500 |
| D | 32 | 19 | 40° | 99-600 |
| E | 38 | 23 | 40° | 120-600 |
| 3V | 9.5 | 8 | 40° | 25-150 |
| 5V | 16 | 13.5 | 40° | 28-400 |
| 8V | 25.5 | 23 | 40° | 48-500 |
| SPA | 12.7 | 10 | 40° | 25-150 |
| SPB | 16.3 | 13 | 40° | 28-400 |
| SPC | 22 | 18 | 40° | 48-500 |
Can be customized according to customer requirements
|

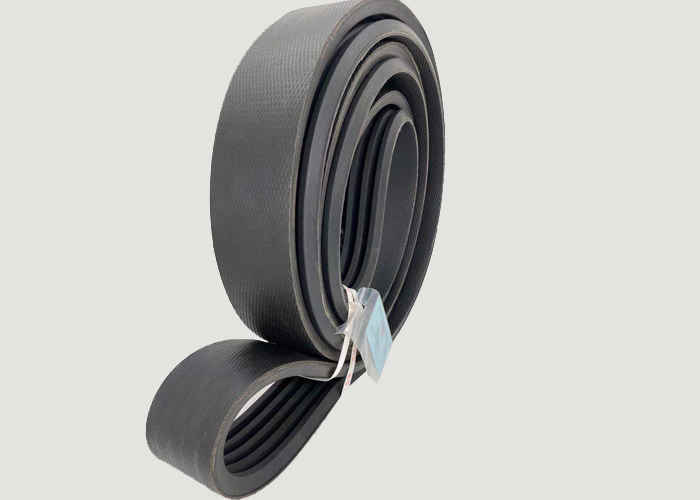

Product Image:
About us:
Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.
Q&A:
Triangle industrial belt Application Essentials:
1. Choose and buy: The triangle industrial belt selected according to the standard model should be suitable for the belt pulley groove, otherwise, the triangle belt will not work normally in the belt pulley groove. When changing with triangle tape, had better take old to agricultural machinery department to buy, in case the model is mistaken.
2.A mixture of old and new belt: to replace two or three above a set of triangle industrial belt, should choose the same type of triangle belt, industrial belt tightness and ask each group of triangle, cannot use old and new, mixed or reduce the number of root, otherwise, the old and the new triangle industrial belt uneven, even old triangle industrial belt, influence power delivery, shorten the life of the triangle industrial belt.
