Transmission Triangle V Belt Rubber Fan Classical And Narrow Wrapped Narrow Banded Rubber Joint CJ V belt
Description:
Banded V belt is made up from Classical or Narrow belts with a strong tie band over them.
The connection layer composed by power cord and full elastic rubber, which joints each single V-belt together. It also minimizes the vibrations from the nonuniformity working of single v belts. There is a certain of vertical surface between single belts, which makes full space for the connection layer and the outer peripheral surface of the pulley. It avoids the friction between layer and pulley. And also avoids to tear the layer and can accommodate debris.
Superior high power transmission capacity
Aramid cord reinforcement for high tensile strength
Lower elongation and slippage
Excellent performance under heavy shock load conditions
Suitable for drives with small pulley diameters
Suitable for heavy-duty, high-speed applications
Anti-static, oil and heat resistant
Temperature range: -25˚C to +100˚C
Manufactured in ISO 9001 registered facilitiy
Model:
| Model Type | Top Width (mm) | Pitch width(mm) | Height for banded (mm) | Height for single(mm) | Length available(mm) |
| AJ | 13 | 15.88 | 10 | 8 | 1200-10000 |
| BJ | 17 | 19.05 | 13 | 10 | 1200-10000 |
| CJ | 22 | 25.4 | 17 | 13 | 1800-10000 |
| DJ | 32 | 36.53 | 21 | 19 | 1900-15000 |
| 3V,9J | 9.7 | 10.3 | 9.7 | 7.9 | 1000-10000 |
| 5V,15J,SPB | 15.7 | 17.5 | 15.7 | 13.5 | 1200-10000 |
| 8V,25J | 25.4 | 28.6 | 25.4 | 23 | 1900-12500 |
| SPC | 22 | 25.5 | 20 | 18 | 1900-10000 |
| Wrapped v belt: A/B/C/D/E/3V/5V/8V/SPA/SPB/SPC |
| Bbanded v belt: AJ/BJ/CJ/DJ/R3V/R5V/R8V |

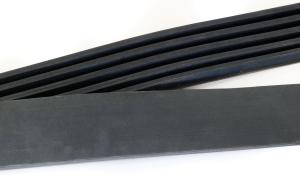

Product Image:
About us:
Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.
Proper care as below:
Our company currently produces common V-belts (collectively referred to as triangle belts) using the executive standard GB/T1171-2017, the narrow V-belt use implementation standard GB/T12730-2008, the joint common V-belt use implementation standard HG/T3745-2011, and the joint narrow V-belt use executive standard HG/T2819-2010,
The triangle belt is made of natural rubber, the frame is made of polyester toughened brown silk, and the outer covering is made of Industrial cotton cloth, which is dipped and calendered.
The scope of our company's three guarantees for quality includes opening layer (covering cloth layer and colloid stripping), rolling (working face turning and twisting), fracture (primer fracture).
